Launch X431 Diagun III Global version 100% Original
Languages: English
Update Online: Free 1 Year
Version: DIAGUN III
1. Newest scan tool
2. Wireless diagnosis
3. Fashionable and compact design
4. Long standby
5. Print screen function
6. Compare two groups of data flow oscillogram at the same time
7.global scale can be used
Languages:
English, French, Spanish, Portuguese, German, Russian, Arabic, Japanese, Traditional Chinese
Note:
1. the default address of this item is the delivery address left by customers.
2. please specify the country when placing the order, if you want the item shipped to other regions.
3. U.S.A customer, the default opening areas is English.When you want to uprade, you can use VPN in offical website by yourself, and we also can send the upgrade files to you via email.
Note 1:
You cannot register in the IP address of Europe and the United States. you have to change other IP address.
You can change IP through VPN which you can get free from us.
There is no IP address limits in upgrade,you can update in Launch official website or by E-mail.
Note 2:
Softwares are based on different languages，so there are some differents. Launch official shall prevail.
Note 3:
Customers can store what they want to print in TF card as a form of picture. Then connect to PC and print it after testing.
Install the patch of DIAGUN printer before printing (downloaded on X431 website).
*For the battery performance, it is recommended to charge the battery fully before the first application..
Features:
global scale can be used
Powerful diagnostic functions
Wireless diagnosis
Fashionable and Integrated design
Better battery system design
Easy for comparison and analysis
Two DataStream waveforms displayed in one screen
Diagun III Coverage
Demo,Smart diagnostic software,Smart OBDII
America
America Ford,Chrysler,GM,Acrus,INFINITI,Lexus.
Australia
Australia Ford,Holden
Brazil
Brazil GM
China
Brilliance,BYD,Changan,ChangCheng,Changhe,Chery,GEELY,Gonow,HaFei,JAC,
Jiangling,SGMW,Tianjin,Xiamen Golden,XinKai,ZhongShun,Zhongxing,ZOTYE
Europe
Audi,Benz,BMW,Citroen,Europe Ford,Fiat,Jaguar,Lancia,Landrover,Opel,Peugeot,
Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,Transporter&V-Class,Volkswagen,
Volvo
India
Indonesia Daihatsu,Indonesia Suzuki,Mahindra,MARUTI,TATA
Japan
Daihatsu,Honda,JPIsuzu,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota
Korea
Daewoo,Hyundai,Kia,Ssangyong
Malaysia
Perodua,Proton
Russia
GAZ,VAZ
S.Africa
S.Africa Opel
Thailand
Thailand Isuzu
Description:
X-431 Diagun III is a newly developed diagnostic computer with full color display screen. By communicating with the powerful DBScar diagnostic connector via Bluetooth or cable, X-431 Diagun III can test almost all the domestic cars and the imported ones from Asia, Europe and America. Meanwhile it features high quality test, upgrading fast any where at any time and synchronized with the newest international models. It’s more credible in quality and performance when compared with other products.
X-431 Diagun III can be connected to external printer through USB port to print the diagnostic result in real time and support the large capacity TF card to store the diagnostic result. It has a smart, portable design and is easy to operate, and multiple languages are provided to cater for different areas in the world. on the X-431 Diagun III stands for Car Cloud logo. Car Cloud is a state-of-an-art individual application product, which is newly developed based on our LAUNCH’s vehicle diagnostic devices and technology service platform with independent intellectual property rights, mainly providing professional, intelligent vehicle monitoring and diagnosing service for car owners.
Car Cloud website is an portal site and service platform for world-wide automobile aftermarket, which, as one of core Telematics applications, aims to provide data processing and application service for car users and all Telematics service providers of automotive aftermarket by collecting front-end DBS diagnostic data, and combining mobile internet and background cloud processing technology.

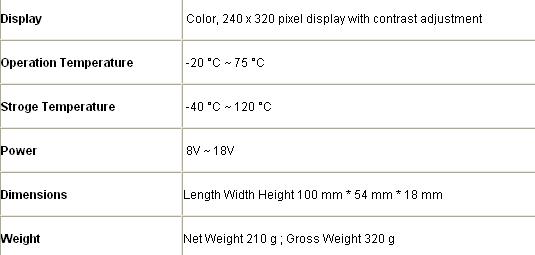

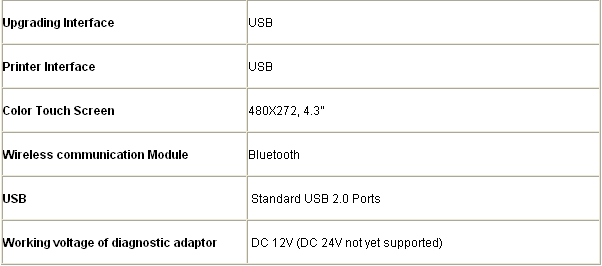

Specification :
Printer available in Launch DIAGUN III:
LENNOVO: LJ2250/LJ2250N, P3900 Series
BROTHER: P2150, 5200/6200 Series and MW-120,MW-140BT,MW-260 model.
Others: Printers available that support PCL printing language.
Launch Diagun III Main unit components view:
List of x431 diagun iii configuration assembly:
List of optional non-16pin connectors:
Instructions:

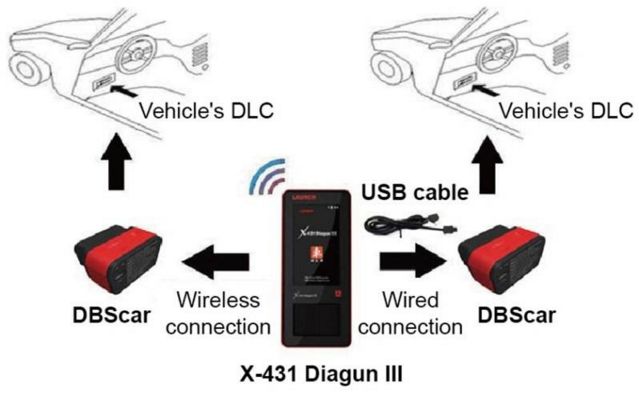

1.Connections
Bluetooth (wireless) / Cable (wired) connections
2.Installation Location
Bluetooth (wireless) Connection Procedure of X-431 Diagun III:
I.Insert the TF card into the slot;
II.Find out the vehicle’s DLC;
III.Plug the 16 PIN end of DBScar diagnostic connector into the vehicle’s DLC.
FAQ:
Q: Why the LCD touch screen responds so slowly in cold weather?
A: It is because the ambient temperature is close to the lower limit of operating temperature range (0-50℃). In this situation, it is necessary to warm up the machine for 30 minutes before test.
Q: Why there is no character on the backlit screen?
A: Check if the power is well connected. Turn off the machine, unplug it and then plug it again for power supply, one second later, try to turn on the machine.
Q: The screen does not respond or responds incorrectly when click with stylus.
A: It is necessary to calibrate the screen. Please see chapter 2.5.2 “Calibrate Touch Screen” for details.
Q: What can I do when the screen is confused?
A: Please quit the current application (interface), and run it again. If the problem still exists, please restart the system.
Q: Why can’t the data be input after Soft Keyboard is activated
A: The position where the cursor locates can’t be edited. Or you have not activated the cursor in the input position, please use the stylus to click the part to edit. You can input the data if the cursor flashes.
Q: Why X-431 Diagun III fails in communication with ECU?
A: Please check and make sure that the diagnostic connector and diagnostic program are matching the vehicle make.
Q: Why the saved data disappeared?
A: There are two possible causes:
1. Your TF card is damaged.
2. You’ve changed language, which is related to the data. You may find the data after switching back to the former language.
Q: Screen of main unit flashes at engine ignition moment.
A: Caused by electromagnetic disturbance and this is normal phenomenon.
Q: Diagnose interrupted during diagnosing process.
A: Caused by electromagnetic disturbing or poor connecting.
Q: There is no response when communicating with on-board computer.
A: Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.
Q: The systems equipped with the vehicle can not be diagnosed.
A: DLC of some early models is separated; refer to User’s Manual for details.
